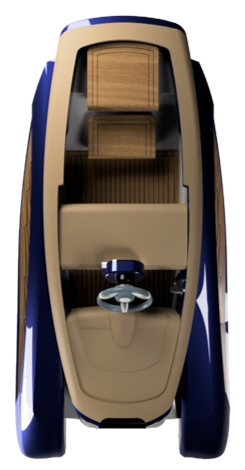

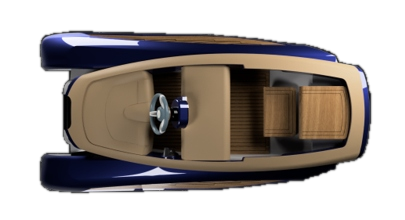

Realms Drift 340 top-down layout diagram
Length
3.4m / 11 ft
Beam
1.7m / 5.5 ft
Internal Length
1.4m / 4.6 ft
Internal Beam
0.86m / 2.8 ft
Maximum Power
30hp
Engine Options
15–30hp outboard
Maximum Engine Weight
87kg
Engine Shaft
S
Maximum Crew
3adults, or 2 adults & 2 children
Maximum Load
295kg
Boat Weight Only
Excluding engine and accessories
99kg
Design Category
CInshore: coastal waters, up to force 6 and 2 m waves

Features & equipment

Class
Sport Utility Tender (SUT)
Intended use
Parent vessel to beach and pontoon; water sports, exploring and play
Hull
Twin tunnel (catamaran) hull
Construction
Foam-core, resin-infused composite
Seating
Luxurious seating designed around two
Ride
High, dry bow; smooth in choppy water
Loading
With more passengers: weight forward to get on the plane, aft once planing; further aft at maximum load. See owner’s manual.
Protection
Removable side covers and two bow bumpers
Tie-down points
Same configuration as RIB tenders of a similar size
Parent vessel stowage
Optional platform chocks; davit loading to be checked before first use (lifting weight includes engine, fuel and accessories)
Launch and recovery
Slides on its hulls, or rolls on removable wheels
Accessories
Under-seat bag, anchor, deck and courtesy lights, underwater and navigation lights
Finish
Hull, deck and upholstery configured per owner

Finish, equipment and accessories are subject to final configuration. Maximum power, maximum load and maximum crew are as stated on the builder’s plate.
